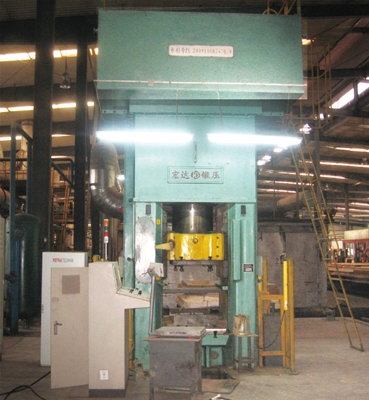

EPZ Series Electric Refractory Press
Category：Electric screw press
Introduction：
EPZ series electric refractory press has following special structure:wider table,longer stroke,higher die height.The ram is with round guide rail,closing screw pair,adopting diplubrication system.And its advantages are:high efficiency and saving energy;simple operation;accurate running;precise quality control;free setting of force and energy;precise control of ram stroke etc.
Hotline:#
Details
Product parameters
| Main Parameters | unit | EPZ-400 | EPZ-630 | EPZ-1000 | EPZ-1250 | EPZ-1600 | |
| Nominal Force | kN | 4000 | 6300 | 10000 | 12500 | 16000 | |
|
Allowing Load (Central Loading) |
kN | 5600 | 8800 | 14000 | 17500 | 22400 | |
| Maximum Striking Force | kN | 8000 | 12500 | 20000 | 25000 | 32000 | |
| Ram Stroke | mm | 550 | 700 | 750 | 750 | 850 | |
| No. of Stroke | min-1 | 24 | 17 | 15 | 14 | 14 | |
| Guide Strip Distance | mm | 740 | 830 | 1030 | 1050 | 1210 | |
| Mini Closing Height | mm | 800 | 800 | 1080 | 1100 | 1080 | |
|
Ram Bottom Dimension |
Front/Back | mm | 900 | 1000 | 1100 | 1200 | 1300 |
| Left/Right | mm | 840 | 850 | 860 | 880 | 960 | |
|
Table Dimension |
Front/Back | mm | 900 | 1120 | 1250 | 1250 | 1350 |
| Left/Right | mm | 830 | 920 | 1120 | 1140 | 1300 | |
| Table Bolster Height | mm | 150 | 150 | 180 | 200 | 200 | |
| Lower Ejector | Mode |
|
Hydraulic | Hydraulic | Hydraulic | Hydraulic |
Hydraulic |
| Force | kN | 150 | 200 | 200 | 200 | 200 | |
| Stroke | mm | 250 | 250 | 250 | 250 | 250 | |
|
Overall Dimension |
Front/Back | mm | 1910 | 2670 | 3000 | 3240 | 3240 |
| Left/Right | mm | 3570 | 3320 | 3640 | 4130 | 4130 | |
| Height | mm | 4760 | 6410 | 6845 | 7520 | 7370 | |
| Main Motor Power | kW | 55 | 75 | 132 | 160 | 200 | |
| Height above the Ground | mm | 4520 | 5505 | 6078 | 6615 | 6465 | |
