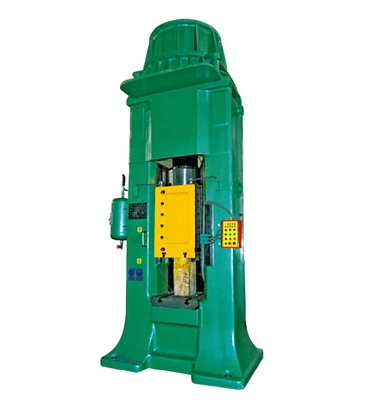

EPD Series Motor Direct Drive Electric Screw Press
Category：Electric screw press
Introduction：
EPD series motor direct drive electric screw press is a kind of energy saving precision forging machinery, it has the characteristics of simple structure, long working life, with high precision standards of forming products, it is suitable for the close die forging, precision pressing, adjusting, bending and coining of middle and small size work pieces.
The electric control system takes PLC as major controller, improving the running reliability of the whole press; The HMI help the operator to set parameters of force and energy, which can also indicate the fault the press.
The electric control system takes PLC as major controller, improving the running reliability of the whole press; The HMI help the operator to set parameters of force and energy, which can also indicate the fault the press.
Hotline:#
Details
Product parameters
|
Main Parameters |
Unit | EPD-160 | EPD-300 | EPD-400 | EPD-630 | EPD-800 | EPD-1000 | EPD-1600 | EPD-2500 | |
| Nominal Force | kN | 1600 | 3000 | 4000 | 6300 | 8000 | 10000 | 16000 | 25000 | |
|
Allowing Load (Central Loading) |
kN | 2500 | 4800 | 6300 | 10000 | 12500 | 16000 | 25000 | 40000 | |
|
Moving Parts Energy |
kJ | 10 | 20 | 36 | 72 | 100 | 140 | 280 | 500 | |
| Ram Stroke | mm | 300 | 380 | 400 | 450 | 475 | 500 | 550 | 600 | |
| No. of Stroke | min-1 | 30 | 26 | 24 | 20 | 19 | 18 | 16 | 14 | |
| Mini Die Height | mm | 300 | 430 | 450 | 550 | 600 | 600 | 750 | 1020 | |
| Table Bolster Height | mm | 120 | 120 | 120 | 140 | 160 | 180 | 200 | 280 | |
|
Table Dimension |
Front/Back | mm | 600 | 700 | 750 | 800 | 900 | 1000 | 1200 | 1400 |
| Left/Right | mm | 560 | 640 | 700 | 750 | 800 | 900 | 1100 | 1250 | |
