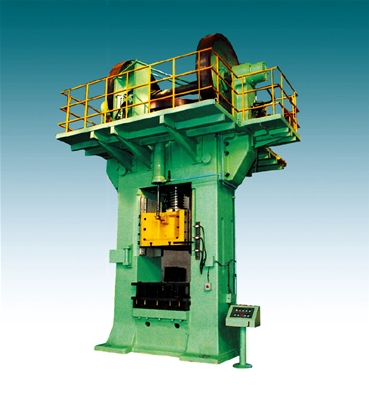

J67 Series Refractory Friction Screw Press
Category：Friction Screw Press
Introduction：
J67 series refractory friction screw press is a series of products designed according to the requirements of the pressing process of refractory material. The product adopts full stroke brake, with a large table, a large stroke, simple structure, great strike force, safe and reliable work, easy to use and convenient maintenance and so on.
Hotline:#
Details
Product parameters
| Main Parameters | Unit | J67-400A | J67-630 | J67-1000 | J67-1250 | J67-1600 | |
| Nominal Force | kN | 4000 | 6300 | 10000 | 12500 | 16000 | |
|
Maximum Striking Force (Central Loading) |
kN | 8000 | 12500 | 20000 | 25000 | 32000 | |
| Ram Stroke | mm | 630 | 550 | 700 | 700 | 700 | |
| No. of Stroke | min-1 | 11 | 13 | 11 | 10 | 9 | |
| Mini Die Height | mm | 920 | 950 | 1080 | 1100 | 1200 | |
| Table Bolster Height | mm | 120 | 180 | 200 | 200 | 200 | |
| Lifting Method | Rigid | Rigid | Rigid | Rigid | Rigid | ||
| Lifting Stroke | mm | 320-500 | 300-450 | 300-600 | 300-600 | 300-600 | |
|
Ram Bottom Dimension |
Front/Back | mm | 700 | 1200 | 1200 | 1350 | 1800 |
| Left/Right | mm | 650 | 920 | 920 | 940 | 1200 | |
|
Table Dimension |
Front/Back | mm | 950 | 1250 | 1250 | 1400 | 2000 |
| Left/Right | mm | 850 | 1250 | 1250 | 1350 | 1600 | |
|
Overall Dimension |
Front/Back | mm | 4460 | 4920 | 4000 | 6000 | 5700 |
| Left/Right | mm | 4000 | 5010 | 6500 | 5700 | 6800 | |
| Height | mm | 6110 | 6840 | 8000 | 7855 | 8470 | |
| Main Motor Power | kW | 45 | 75 | 90 | 110 | 132 | |
