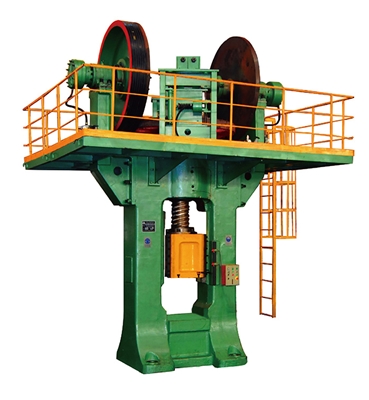

J93 Series Refractory Friction Screw Press
Category：Friction Screw Press
Introduction：
J93 series refractory friction screw press is a kind of products designed according to the requirements of the pressing process of refractory material. The product adopts full stroke braking, simple structure, large striking force, safe and reliable work, convenient use and maintenance, with the international advanced level of similar products.
Hotline:#
Details
Product parameters
| Main Parameters | Unit | J93-400C | J93-630D | J93-1000C | J93-1600C | J93-2500C | |
| Nominal Force | kN | 4000 | 6300 | 10000 | 16000 | 25000 | |
|
Maximum Striking Force (Central Loading) |
kN | 8000 | 12500 | 20000 | 32000 | 50000 | |
| Ram Stroke | mm | 500 | 600 | 700 | 700 | 800 | |
| No. of Stroke | min-1 | 14 | 11 | 10 | 10 | 9 | |
| Guide Strip Distance | mm | 650 | 715 | 1000 | 920 | 1100 | |
| Mini Die Height | mm | 400 | 500 | 500 | 550(750) | 700(900) | |
| Table Bolster Height | mm | 120 | 150 | 200 | 200 | 280 | |
| Lifting Method |
|
Rigid | Rigid | Rigid | Rigid | Rigid | |
| Lifting Stroke | mm | 350 | 350 | 380 | 400 | 400 | |
|
Ram Bottom Dimension |
Front/Back | mm | 636 | 760 | 1190 | 1000(1200) | 1560(1900) |
| Left/Right | mm | 636 | 700 | 800 | 900 | 1060 | |
|
Table Dimension |
Front/Back | mm | 820 | 920 | 1200 | 1250(1400) | 1560(2000) |
| Left/Right | mm | 730 | 820 | 1000 | 1100 | 1200 | |
|
Overall Dimension |
Front/Back | mm | 3600 | 4600 | 5700 | 4700 | 5360 |
| Left/Right | mm | 3200 | 4660 | 5000 | 6800 | 7090 | |
| Height | mm | 5165 | 6060 | 7290 | 8090 | 9410 | |
| Main Motor Power | kW | 37 | 55 | 90 | 132 | 2x110 | |
| Height above the Ground | mm | 5065 | 5910 | 6890 | 7190 | 8210 | |
